SamInTheLoop · #61 Posted: **Aug 9, 2011, 3:43 PM**

^ Could have been...I did watch that one pretty closely but don't remember...

Anyway, on the one-time potential of this being a larger building, it would have been nice no doubt, but of course more concerned with the design, and we have a beauty here, hopefully execution is just as high-quality. On the height, if it makes anybody feel better, remember this has Loewenberg as a VE force, so even if we assume it were 100 units larger (maybe another 7-9 stories or so?), that's what for a building where Loewenberg is the developer and architect of record - like 35-40 extra feet?

Not that tremendous a difference....

Tom In Chicago · #62 Posted: **Aug 9, 2011, 9:17 PM**

They were pushing dirt around with a bulldozer on site today. . . for the record. . .

. . .

ardecila · #63 Posted: **Aug 9, 2011, 10:51 PM**

I know I'm gonna get lambasted for this, but I'm glad the height was reduced... we still get a beautiful minimalist tower, with the added bonus that there is more demand for rentals left in the market. Perhaps that's enough to make or break one of the other proposals.

Tom In Chicago · #64 Posted: **Aug 10, 2011, 4:39 PM**

There was never any previous proposal for this site and therefore no height reduction. . .

. . .

harryc · #65 Posted: **Aug 10, 2011, 6:22 PM**

Mat is almost done, lots of work, photos as soon as I have a moment.

jcchii · #66 Posted: **Aug 10, 2011, 9:37 PM**

I keep waiting for a crane

harryc · #67 Posted: **Aug 11, 2011, 2:23 AM**

Last week (Aug 3rd)

Today (name on the trailer is McHUGH)

The top of the collumn - bottom of the floor ?

Soon to be a pair

The top of another big collumn woven into the mat.

4 mount points for the crane base ?

harryc · #68 Posted: **Aug 13, 2011, 6:18 PM**

Aug 12

Crane - well embeded

Aug 11

Aug 12

harryc · #69 Posted: **Aug 20, 2011, 10:38 PM**

Some progress, I took a stroll each day so I came away with a few photos, I'll break them into 4 posts; overview, forms, core, and crane.

Mon Aug 15

Tues Aug 16

Wed Aug 17

Thur Aug 18

Fri Aug 19

harryc · #70 Posted: **Aug 20, 2011, 10:45 PM**

Styrofoam pieces being used to hold up the rebar cage, the small white pipes are sleves for the rods that hold the forms together.

Finessing the form in so it is precisely level.

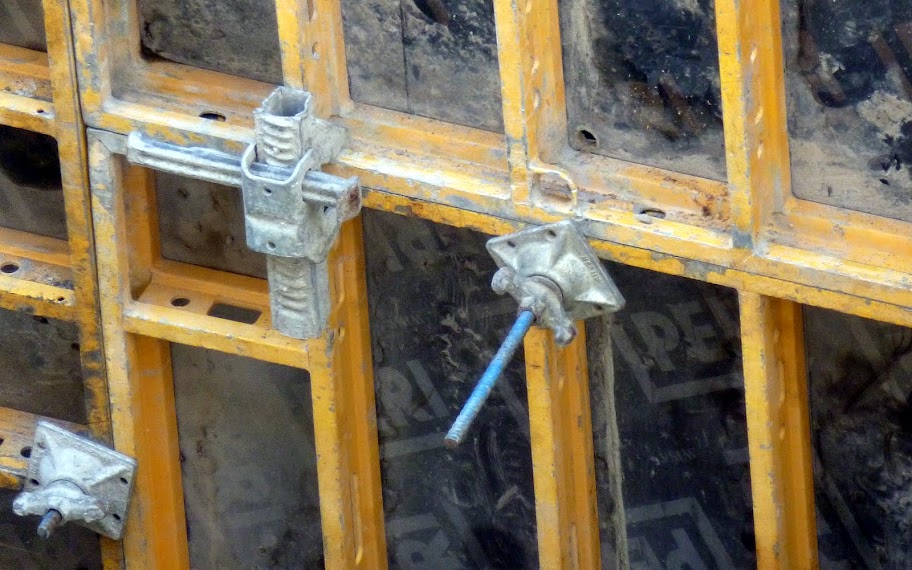

A modular form wall system

harryc · #71 Posted: **Aug 20, 2011, 11:23 PM**

Work on excavating the main foundaiton "mat" This will sit on 11 main collumns.

Monday Aug 15

Tuesday Aug 16

Wed Aug 17

Friday Aug 19

A sump shaft showing how the steel tube was put in a larger hole then coarse sand filled in. The tube will have holes punched/cut in it and the sand will aid in the drainage.

Delicately excavating around the foundation tops. The column was filled up to the level of the bottom of the mat with cement, then the rest of the hole (rebar still sticking up) was filled with gravel (crushed limestone).

Measure twice dig once.

Form for the bottom of the mat

A tie to the past - I can still remember when there was a rail yard here.

cityenthusiast · #72 Posted: **Aug 21, 2011, 9:01 PM**

forgive me If this has been brought up before(which im sure it has) but doesnt this seem really short for a 49 story building?Why so short? The floor height is about 8.5 feet

Alliance · #73 Posted: **Aug 21, 2011, 11:57 PM**

^^^ 4 of those floors are underground. Its only 45 stories above ground. That'll give you some height back.

They're sure moving along on this thing.

EarlyBuyer · #74 Posted: **Aug 22, 2011, 12:02 AM**

Photos by EarlyBuyer Taken 8/21/11

harryc · #75 Posted: **Aug 22, 2011, 9:36 PM**

The last of the shots from last week - today the head was on the crane and they were assembling the boom

Everybody pulls - then the truck.

One end is top center at the feet of the man in read - the other end is tied to the back of the pickup

Panel ready

some assembly required

Easiest to assemble on the ground

Rotate motors

Crane to put up the crane

jcchii · #76 Posted: **Aug 22, 2011, 11:06 PM**

this is going to be one of those that really goes up fast once they get rolling

harryc · #77 Posted: **Aug 28, 2011, 9:35 PM**

Aug 22

Aug 25

Aug 26

Aug 22

Aug 25

Aug 26

harryc · #78 Posted: **Aug 28, 2011, 9:39 PM**

Aug 22nd - putting it all together.

Well used boom

Aug 25 - up and running

here's looking at you

harryc · #79 Posted: **Aug 28, 2011, 9:43 PM**

Checking again.

seadragon · #80 Posted: **Sep 3, 2011, 7:29 PM**

Hello Harry C

Nice set of photos, thank you.

Although academic and perhaps wasted effort on my part, but in reference to one of your tower crane images posted on 28 Aug, the forth from last photo titled "well used boom", hope that a person on the team responsible for erecting the tower crane noticed and had replaced what looks like a possible missing retainer pin on the small "figure 8" tie bar link.

Croped and modified photo taken by Harry C. (28 Aug 2011).
